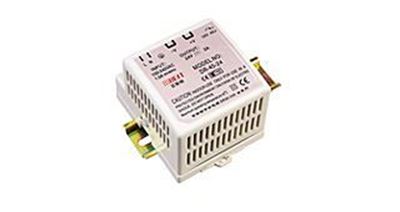

BDR-45

General Specitication

Single output	Model
Single output	BDR-45W-5	BDR-45W-12	BDR-45W-15	BDR-45W-24
DC output	5V 5A	12V 3.5A	15V 2.8A	24V 2A
Wave and noise	50MVP-P	50MVP-P	50MVP-P	50MVP-P
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
Efficiency	72%	77%	77%	80%
Adiustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85～264VAC/ 47～63Hz 120～370VDC
AC Inrush current	Selected by switch 28A/115V 56A/230V
OverLoad protection	105%～150% hiccup mode ,auto-recovery
Over-voltage protection	115%～135%rated output voltage
Setup,rise,hold up time	800ms, 60ms, 50ms /230VAC at full load
Withstand voltage	I/P-O/P：3KvAC I/P-FG:1.5Kv O/P-FG:0.5Kv 1 minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature	~-10℃～+50℃
Safety standards	Design refer to GB4943,UL60950,EN60950
EMC standards	Design refer to GB9254,EN55022 classB
Weight	0.31kg

Overall Dimenseion(mm)	TOP
